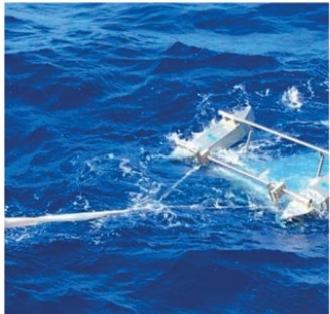

Surface Microplastic Trawl Net

Microplastic sampling equipment suitable for various environments such as marine, rivers, reservoirs, lakes

NOVASEA-112

NOVASEA

Microplastic trawl netManta trawlCatamaran trawl

The Surface Microplastic Trawl Net is suitable for various environments such as marine, rivers, reservoirs, and lakes, capable of collecting microplastic samples from the surface or specific depths, and also suitable for collecting surface plankton samples. We offer two models (Catamaran type / Manta type) to meet different sampling needs, and support customization.

Technical Specifications

Detailed product parameters and technical specifications

Frame material	Stainless steel
Mouth dimensions	100 cm × 50 cm
Mouth area	0.5 m²
Mesh aperture	300 μm
Net length	180 cm
Weight	approx. 18 kg
Frame material	Stainless steel
Mouth dimensions	30 cm × 15 cm
Mouth area	0.045 m²
Mesh aperture	300 μm
Net length	180 cm
Net bottom tube diameter	11 cm
Unique design	Two horizontal wings (enhance towing stability)

Key Advantages

Main features and advantages of the product

Strong corrosion resistance

Trawl net frame made of stainless steel material, good anti-corrosion performance

Leak-proof design

Coiled mouth fixing design reduces sample leakage risk

Convenient transport and operation

Detachable structure for easy transport, carrying, and field work, overall design easy to operate

Strong adaptability

Adjustable net mouth height, optional floats for stable contact with water surface, suitable for various hydrological conditions

Customization options

Mesh aperture, net mouth opening area, mesh size, etc., can be customized according to specific research needs

Application Areas

Our products are widely used in multiple fields, providing professional solutions for different industries

Marine microplastic pollution surveys

River and lake microplastic monitoring

Reservoir water quality assessment

Plankton sampling research

Environmental impact assessment projects

Scientific research and teaching practice
